Explore Our Current Lineup

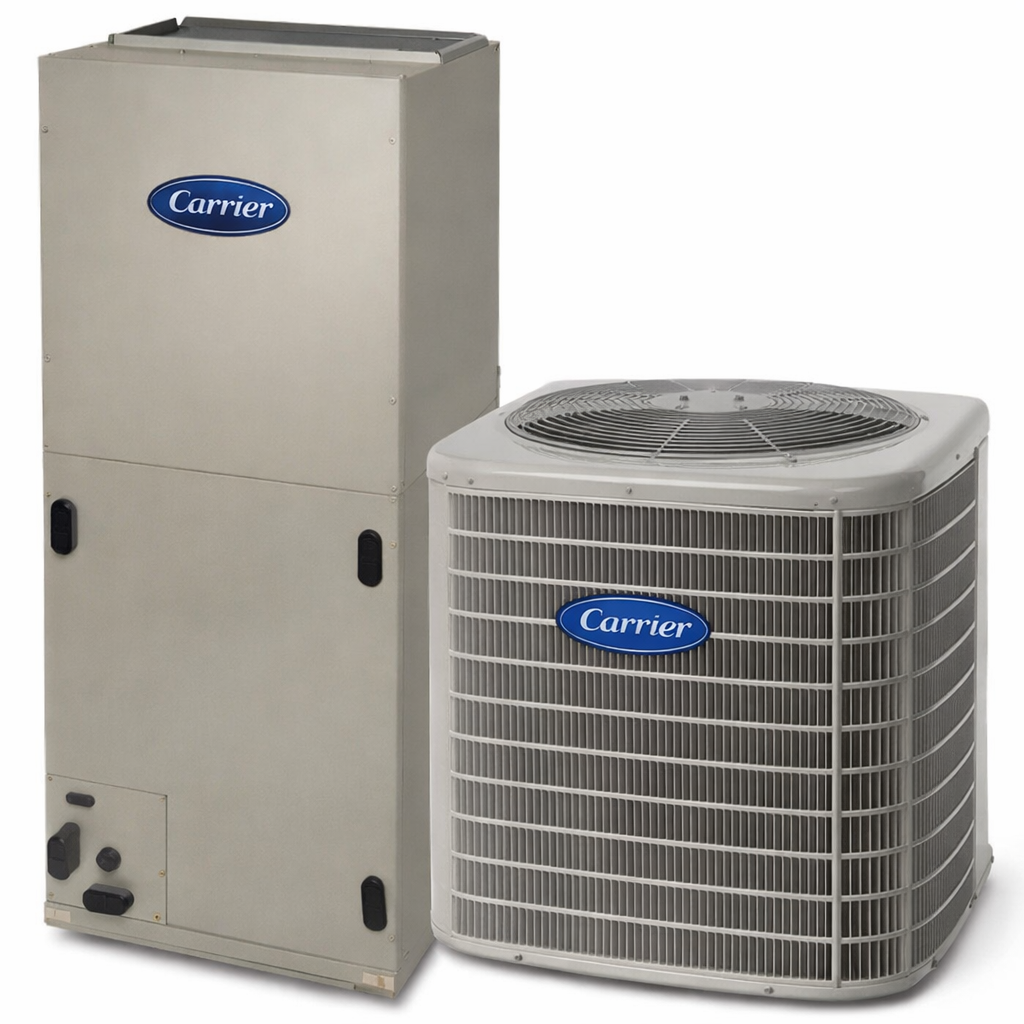

Description
PA5SAN52400W
P = Builder / Brand Type
A = AC / OD Type
5 = 14.3 SEER2
S = Single-Stage / OD Design Type
A = Major Iteration
N = 208/230-1 / Voltage
5 = R-454B / Refrigerant
24 = 24,000 BTUH (2 Tons) / Nominal Capacity
0 = Standard / Feature
0 = Standard / Special Feature
W = Standard SW AC / Region
This unit has been designed utilizing non-ozone depleting, low global warming potential R-454B refrigerant.
Air conditioners with R-454B refrigerant provide a collection of features unmatched by any other family of equipment.
NOTE: Ratings are subject to change at any time. Always refer to the AHRI directory (www.ahridirectory.org) for the most up-to-date ratings information.
Features / Benefits
Efficiency
13.8 - 17.0 SEER2 / 11.2 – 14.5 EER2
Microchannel Technology refrigeration system
Indoor air quality accessories available
Comfort
System supports programmable or standard thermostat controls
Reliability
Non-ozone depleting, low global warming potential R-454B refrigerant
Scroll compressor
Internal pressure relief valve
Internal thermal overload
Filter drier
Durability
Protection Package:
Solid, durable sheet metal construction
Dense wire coil guard
Applications
Long–line – up to 250 feet (76.20 m) total equivalent length, up to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.4 m) evaporator above condenser (See Long Line Guide for more information.)
Low ambient cooling (down to 0°F / -18°C ) with approved low ambient accessory kits.
Limited Warranty
5-year parts limited warranty (including compressor and coil)
10-year parts limited warranty (including compressor and coil) with timely registration*
– Equipment must be registered within 90 days of original installation, except in jurisdictions where warranty benefits cannot be conditioned on registration.
* Applies to original purchaser/homeowner and not available to subsequent owners except in jurisdictions where applicable laws dictate otherwise.
Description
1.5 Ton Apartment Fan Coil Unit R-410A / Carrier® Front Return
FMA4X1800AL
F = Fan Coil
M = Multi-Family / TYPE
A = Apartment / INSTALLATION TYPE
4 = Environmentally Balanced R-410A / REFRIGERANT
X = TXV & ECM Motor / METERING DEVICE / BLOWER TYPE
1800 = 18,000 BTUH = 1.5 Tons / NOMINAL CAPACITY
A = Marketing Revision / REVISION
L = Aluminum Coil / SALES CODE / FEATURES
FEATURES:
Upflow application only
Accessory field-installed electric heat kits available in 5, 7.5, or 10 kW
208/230-1-60 supply voltage
Cabinet exterior is galvanized sheet metal
Cabinet air leakage rate below 1.4% when tested to ASHRAE Standard 193
Insulated for conditioned space (not to be installed in unconditioned spaces)
All Aluminum coils
Filter size: 16" x 20" x 1" (Field Installed)
Description
FMA4X2400AL
F = Fan Coil
M = Multi-Family / TYPE
A = Apartment / INSTALLATION TYPE
4 = Environmentally Balanced R-410a / REFRIGERANT
X = R-410a TXV & ECM Motor / METERING DEVICE / BLOWER TYPE
2400 = 24,000 BTUH = 2 Tons / NOMINAL CAPACITY
A = Marketing Revision / REVISION
L = Aluminum Coil / SALES CODE / FEATURES
FEATURES:
Upflow application only
Accessory field-installed electric heat kits available in 5, 7.5, or 10 kW
208/230-1-60 supply voltage
Cabinet exterior is galvanized sheet metal
Cabinet air leakage rate below 1.4% when tested to ASHRAE Standard 193
Insulated for conditioned space (not to be installed in unconditioned spaces)
All Aluminum coils
FMA4P
For use with R-410A refrigerant utilizing standard piston
FMA4X
R-410A refrigerant, TXV standard
PERFORMANCE
PSC motor on all FMA4P
ECM motor on all FMA4X
Motor suspended on rubber grommets for quieter operation
Fresh air intake knockouts in cabinet
EASY TO INSTALL AND SERVICE
Units fits between standard stud spacings
All service access is located in the front
Primary and secondary drain connections exit from the bottom, access panel in bottom of cabinet
No return-air ductwork required in specific applications
Wall hanging brackets included with the unit
LIMITED WARRANTY*
5 year parts limited warranty
-With timely registration, an additional 5 year parts limited warranty
* For residential applications only. See warranty certificate for complete details and restrictions, including warranty coverage for other applications.
Description
PH5SAN53000A
P = Builder / Brand Type
H = HP / OD Type
5 = 14.3 SEER2
S = Single-Stage / OD Design Type
A = Major Iteration / Major Series
N = 208/230-1 / Voltage
5 = R-454B / Refrigerant
30 = 30,000 BTUH (2.5 Tons) / Nominal Capacity
0 = Standard / Feature
0 =Standard / Special Feature
A = Standard HP / Region
This unit has been designed utilizing non-ozone depleting and low global warming potential R-454B refrigerant.
Heat pumps with R-454B refrigerant provide a collection of features unmatched by any other family of equipment.
Industry leading Features / Benefits
Efficiency
14.3 - 16.0 SEER2 / 10.0 - 12.5 EER2 / 7.5 - 7.8 HSPF2 (depending on unit size and indoor combination installed)
Indoor air quality accessories available
Comfort
System supports programmable or standard thermostat controls
Sound
Sound levels as low as 70 dBA
Reliability
Non-ozone depleting and low global warming potential R-454B refrigerant
Scroll compressor
Internal pressure relief valve
Internal thermal overload
Loss of charge switch
Filter drier
Balanced refrigeration system for maximum reliability
Durability
Protection Package:
Solid, durable sheet metal construction
Dense wire coil guard
Applications
Long-line - up to 250 feet (76.20 m) total equivalent length, up to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.38 m) evaporator above condenser (See Longline Guide for more information.)
Low ambient cooling (down to 0°F/-17.8°C) with approved low ambient accessory kits
Limited Warranty
5-year parts limited warranty (including compressor and coil)
10-year parts limited warranty (including compressor and coil) with timely registration*
– Equipment must be registered within 90 days of original installation, except in jurisdictions where warranty benefits cannot be conditioned on registration.
Description
PF5MNXB24L00
PF5 = Fan Coil, Multipoise with R-454B / Product Type
N = 208/230v, 1 ph, 60 Hz / Electrical
X = Singular, TXV / Cabinet/Expansion Device
B = 17.6” / Cabinet Width
24 = 24,000 / Capacity
00 = Heater Size
L = Aluminum Coil
AIR HANDLER TECHNOLOGY AT ITS FINEST
The PF5M fan coil has the proven technology of fan coil units with R-454B refrigerant as well as vertical and horizontal applications. The design features contoured condensate pans with rugged drain connections, ensuring that little water is left in the unit at the end of the cooling duty cycle. The lack of standing condensate and corrosion free pans improves IAQ and product life, features homeowners appreciate.
Standard features include grooved tubing and louvered fins. Coil circuiting has also been updated to make the most of heat pumps and air conditioners. Units come with solid state fan controls, 1-inch (25mm) thick insulation with R-value of 4.2, multi-speed motors, and fully-wettable coils.
Assembled at the factory compliant with low leak requirements of less than 2% cabinet leakage rate at 0.5 inches W.C. and 1.4% cabinet leakage rate at 0.5 inches W.C. when tested in accordance with ASHRAE 193 standard.
The PF5M fan coil design is loaded with popular features. These fan coils utilize the latest in electronic commutation motor (ECM) technology through the use of high efficiency, multi-tap ECM motors allowing reliable air delivery with increased static pressure. It comes in a pre-painted (taupe metallic) galvanized steel casing. The unit is shipped with a R-454B refrigerant TXV (sizes 18–60).
STANDARD FEATURES
Refrigerant leak detection dissipation system for added safety
Multi-tap ECM (electronic commutating motor) motors – all sizes.
Integrated motor controls, with 90-sec off TDR function, have replaced integrated circuit board.
Five available speed tags to meet a wide range of applications.
Large, grooved tube, louvered fin coils.
Efficient, quiet, time-tested blower housings and diffusers.
Sturdy, drainable condensate pans.
Construction innovations designed to prevent cabinet sweating.
Tested for condensate disposal in much tougher conditions than Air Conditioning and Refrigeration Institute requirements.
Super-thick R-4.2 insulation with vapor barrier.
Pre-painted galvanized steel cabinet (taupe metallic).
Design meets stringent regulations for cabinet air leakage of less than 2% when tested at 0.5 inches W.C., and less than 1.4% at 0.5 inches W.C. when tested in accordance with ASHRAE 193 standard.
Horizontal hanging provisions on cabinet. • Newly improved filter rack area filter door insulation added for improved air seal. No tools required to access filter.
3 through 30 kW accessory heaters - field installed.
Easy plug-in provisions for heater installation.
Entry options for high and low voltage wiring hook-up.
Leak-preventing sweat connections.
Factory installed thermostatic expansion valve, TXV, on all coils.
Designed for manufactured housing applications.
WARRANTY
Default 5-year parts limited warranty:
– 10-year parts limited warranty with timely registration*.
Equipment must be registered within 90 days of original installation, except in jurisdictions where warranty benefits cannot be conditioned on registration.
Description
PF5MNXB30L00
PF5 = Fan Coil, Multipoise with R-454B / Product Type
N = 208/230v, 1 ph, 60 Hz / Electrical
X = Singular, TXV / Cabinet/Expansion Device
B = 17.6” / Cabinet Width
30 = 30,000 / Capacity
00 = Heater Size
L = Aluminum Coil
AIR HANDLER TECHNOLOGY AT ITS FINEST
The PF5M fan coil has the proven technology of fan coil units with R-454B refrigerant as well as vertical and horizontal applications. The design features contoured condensate pans with rugged drain connections, ensuring that little water is left in the unit at the end of the cooling duty cycle. The lack of standing condensate and corrosion free pans improves IAQ and product life, features homeowners appreciate.
Standard features include grooved tubing and louvered fins. Coil circuiting has also been updated to make the most of heat pumps and air conditioners. Units come with solid state fan controls, 1-inch (25mm) thick insulation with R-value of 4.2, multi-speed motors, and fully-wettable coils.
Assembled at the factory compliant with low leak requirements of less than 2% cabinet leakage rate at 0.5 inches W.C. and 1.4% cabinet leakage rate at 0.5 inches W.C. when tested in accordance with ASHRAE 193 standard.
The PF5M fan coil design is loaded with popular features. These fan coils utilize the latest in electronic commutation motor (ECM) technology through the use of high efficiency, multi-tap ECM motors allowing reliable air delivery with increased static pressure. It comes in a pre-painted (taupe metallic) galvanized steel casing. The unit is shipped with a R-454B refrigerant TXV (sizes 18–60).
STANDARD FEATURES
Refrigerant leak detection dissipation system for added safety
Multi-tap ECM (electronic commutating motor) motors – all sizes.
Integrated motor controls, with 90-sec off TDR function, have replaced integrated circuit board.
Five available speed tags to meet a wide range of applications.
Large, grooved tube, louvered fin coils.
Efficient, quiet, time-tested blower housings and diffusers.
Sturdy, drainable condensate pans.
Construction innovations designed to prevent cabinet sweating.
Tested for condensate disposal in much tougher conditions than Air Conditioning and Refrigeration Institute requirements.
Super-thick R-4.2 insulation with vapor barrier.
Pre-painted galvanized steel cabinet (taupe metallic).
Design meets stringent regulations for cabinet air leakage of less than 2% when tested at 0.5 inches W.C., and less than 1.4% at 0.5 inches W.C. when tested in accordance with ASHRAE 193 standard.
Horizontal hanging provisions on cabinet. • Newly improved filter rack area filter door insulation added for improved air seal. No tools required to access filter.
3 through 30 kW accessory heaters - field installed.
Easy plug-in provisions for heater installation.
Entry options for high and low voltage wiring hook-up.
Leak-preventing sweat connections.
Factory installed thermostatic expansion valve, TXV, on all coils.
Designed for manufactured housing applications.
WARRANTY
Default 5-year parts limited warranty:
– 10-year parts limited warranty with timely registration*.
Equipment must be registered within 90 days of original installation, except in jurisdictions where warranty benefits cannot be conditioned on registration.
Description
PA5SAN53602W
P = Builder / Brand Type
A = AC / OD Type
5 = 14.3 SEER2
S = Single-Stage / OD Design Type
A = Major Iteration
N = 208/230-1 / Voltage
5 = R-454B / Refrigerant
36 = 36,000 BTUH (3 Tons) / Nominal Capacity
0 = Standard / Feature
2 = Coil Optimization / Special Feature
W = Standard SW AC / Region
This unit has been designed utilizing non-ozone depleting, low global warming potential R-454B refrigerant.
Air conditioners with R-454B refrigerant provide a collection of features unmatched by any other family of equipment.
NOTE: Ratings are subject to change at any time. Always refer to the AHRI directory (www.ahridirectory.org) for the most up-to-date ratings information.
Features / Benefits
Efficiency
13.8 - 17.0 SEER2 / 11.2 – 14.5 EER2
Microchannel Technology refrigeration system
Indoor air quality accessories available
Comfort
System supports programmable or standard thermostat controls
Reliability
Non-ozone depleting, low global warming potential R-454B refrigerant
Scroll compressor
Internal pressure relief valve
Internal thermal overload
Filter drier
Durability
Protection Package:
Solid, durable sheet metal construction
Dense wire coil guard
Applications
Long–line – up to 250 feet (76.20 m) total equivalent length, up to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.4 m) evaporator above condenser (See Long Line Guide for more information.)
Low ambient cooling (down to 0°F / -18°C ) with approved low ambient accessory kits.
Limited Warranty
5-year parts limited warranty (including compressor and coil)
10-year parts limited warranty (including compressor and coil) with timely registration*
– Equipment must be registered within 90 days of original installation, except in jurisdictions where warranty benefits cannot be conditioned on registration.
