Standard Features:
High efficiency Energy-efficient compressor
High-density foam compressor Advanced Copeland Technology
Fully charged for 15' of tubing length
Copper tube/ enhanced aluminum fin coil-5mm diameter
Factory-installed filter drier
Sweat connection service valves with easy access to gauge ports
Enclosed contactor
High-pressure switch
Ground lug connection
Capacitors with extended life
AHRI Certified
ETL Listed
Cabinet Features:
Removable grille-style top design compliant with UL 60335-2-40
Venturi for increased velocity of airflow
Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
Steel louver coil guard
Wire fan discharge grille
Top and side maintenance access
Single-panel access to controls with space provided for field-installed accessories
When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

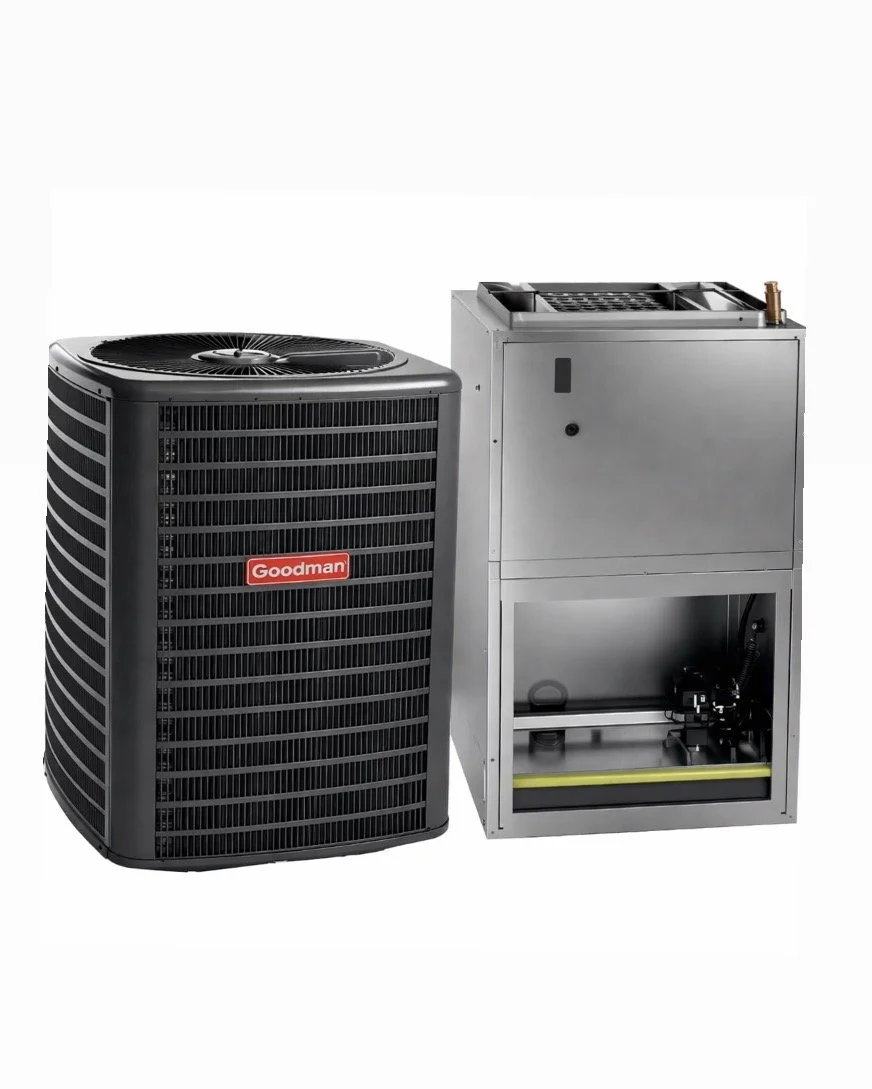

The Goodman AWST Air Handler (front-return) is designed to be vertically wall or stud mounted. This unit features a check flowrater and direct drive, multi-speed motor. The AWST is housed in a fully insulated, galvanized-steel cabinet.
Standard Features:
AWST Models: Equipped with a fully adjustable TXV
Designed for use with R-32 Refrigerant
Direct-drive, multi-speed motors allows air volume variation for heating/cooling
Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
Aluminum tubing coils on all models
Factory-installed pull-type disconnect
Factory installed R-32 sensor designed for the lifespan of the coil.
Thermoplastic drain pan with bottom primary and secondary drain connections
Built-in filter rack (filter included)
Large chassis (2.5- and 3-ton units) front return only
Small chassis (1.5- and 2-ton units) front or bottom return
Wall-hanging bracket provided
AHRI Certified; ETL Listed
